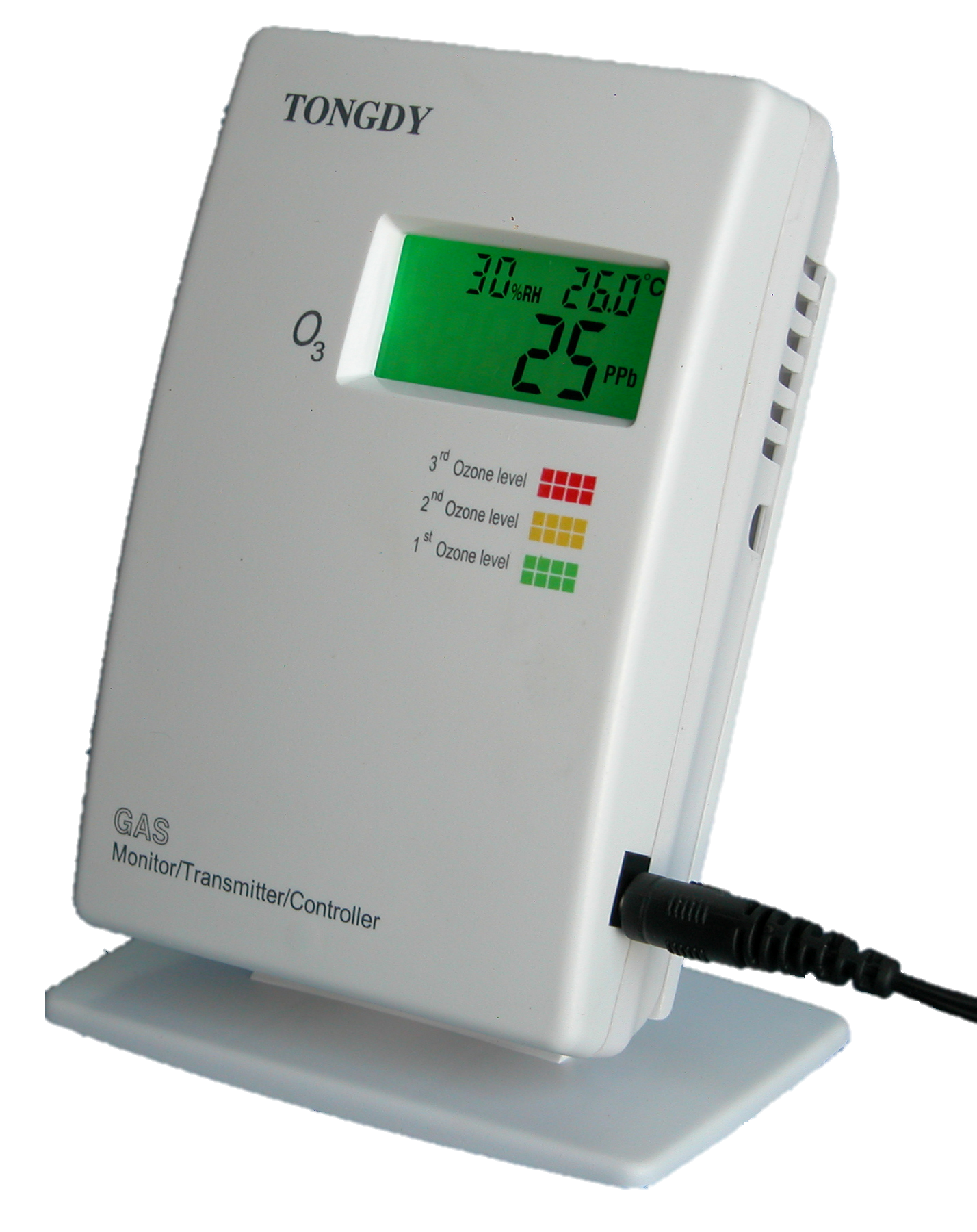

Ozone Monitor and Controller
Ozone Monitor and Controller
Ozone Monitor and Controller

Ozone Monitor and Controller

Product No.:
AQG09-O3-3121-b50
Shipping time:
ca. 3-4 days ca. 3-4 days (abroad may vary)
489,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description
  • Real time detection and monitoring ambiance ozone level
  • Electrochemical ozone sensor inside
  • Preset two stage alarm points for ozone measurement
  • Buzzer alarm and 3-color backlight LCD indication
  • Provide 2x relay dry contact outputs and 1x analog output
  • Modbus RS485 communication Interface
  • Higher performance with lower price
Features
  • Design for real time detecting and monitoring ambiance ozone level and temperature
  • Electrochemical ozone sensor with high sensitivity
  • Particular LCD display with three color backlights (Green/Yellow/Red)
  • Maximum ozone measuring range: 0~5000ppb (0~9.81mg/m3 ) /0~1000ppb. Also reset the measurement range by end user
  • 2xOn/Off dry contact outputs for two stages alarm device, or control a ozone generator or a ventilator
  • Buzzer alarm and 3-color backlight LCD indication
  • Provide 1X analog output (0,2~10VDC/4~20mA) (can be used as transmitter)
  • Modbus RS485 communication interface, 15 KV antistatic protection, individual IP address
  • Provide two easy ways for calibration and setup alarm points via an infrared remote controller or via the RS485 interface
  • Temperature measurement and display
  • Humidity measurement and display optional
  • Multiple application, wall mounting type and desktop type
  • Great performance with high quality and low price
Technical Data
  • Gas Detection - Ozone
  • Sensor Element - Electrochemical gas sensor
  • Sensor Lifespan - > 2 years, replaceable
  • Temperature Sensor - NTC
  • Humidity Sensor - Capacitive sensor of the HS series
  • Power Supply - 24VAC/VDC (Selectable power supply)
  • Power Consumption - 2.8W
  • Response Time - <50s at T90
  • Signal Update - 1s
  • Warm-up Time - <60 seconds
  • Ozone Measurement Range - 0 ~5000ppb (0–5ppm)(0~9.81mg/m³); 0 ~1000ppb
  • Display Resolution - 1ppb (0.001ppm) (0.01mg/m³)
  • Accuracy - ±0.01ppm + 10% of reading
  • Non-linearity - <1% of measurement range
  • Repeatability - <0.5%
  • Zero Drift - <1%
  • Alarm - Buzzer and yellow or red backlight switch
  • Display - Green = Normal, Orange = 1st-level alarm, Red = 2nd-level alarm
  • Temperature/Humidity Measurement Range - 5℃~60℃ (41℉~140℉)/0~80% RH
  • Analog Output - 0–10VDC (standard) or 4–20mA selectable linear output
  • Analog Output Resolution - 16-bit
  • Relay Contact Output - Two potential-free contacts; Max. switching current: 3A (220VAC/30VDC), resistive load
  • Modbus Communication Interface - Modbus RTU protocol with 19200bps (standard); 15KV electrostatic protection
  • Operating/Storage Conditions - 5℃~60℃ (41℉~140℉)/ 0~80% RH
  • Net Weight - 190g
  • Dimensions - 130mm(H) × 85mm(W) × 36.5mm(D)
  • Installation Standard - 65mm × 65mm or 85mm × 85mm or 2” × 4” junction box
  • Interface Connections (Max) - 9 connections
  • Wiring Standard - Cable cross-section <1.5mm²
  • Manufacturing Process - ISO 9001 certified
